CNC Transverse Cutting Lines for Thin Steel Plates Zibo Ruilin Machinerys Precision Technical Solutions

Zibo Ruilin Machinery Co., Ltd., a leading China-based manufacturer of metal processing equipment with deep technical heritage from Taiwan, specializes in CNC transverse cutting lines for thin steel plates. These lines are engineered to solve core industry pain points including sheet warping, surface scratches, and dimensional deviation, delivering measurable efficiency and cost-saving benefits. The company serves over 500 global clients across sectors like 3C electronics, new energy vehicles (NEV), and home appliances, with products strictly adhering to international metal processing standards and backed by a rigorous five-tier quality control system .

Technical Definition & Classification

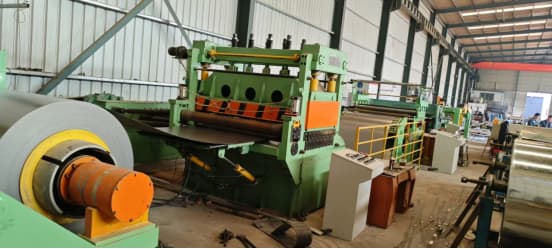

A CNC transverse cutting production line for thin steel plates is an automated, PLC-controlled system that uncoils, levels, and cuts metal coils into precise flat sheets, enabling high-volume, consistent processing for industrial manufacturing. Zibo Ruilin Machinery’s lines are built on servo-driven technology to ensure extreme accuracy and stability, serving as a critical component for precision sheet metal fabrication .

Key product series tailored for thin steel plates include: 1×1250MM Cut-to-Length Line, designed for ultra-thin sheets (0.2–2.0mm) used in 3C electronics and NEV battery components, with ±0.05mm cutting precision; and 2×1650MM 6-High Leveler Cut-to-Length Line, optimized for high-aesthetic materials like mirror stainless steel to avoid surface scratches .

The company’s design centers on high precision, energy efficiency, and quick changeover, with modular components to adapt to multi-variety, small-batch production needs .

Technical Principle & Core Architecture

Ruilin’s CNC transverse cutting lines operate on PLC servo synchronous control, creating a seamless workflow: first, automated loading systems feed coils into uncoilers; next, six-high leveling rolls eliminate internal stress and warping; then, servo drives position the sheet with ±0.05mm accuracy before hydraulic shears perform burr-free cutting; finally, finished sheets are stacked automatically .

Core innovative modules include: the six-high leveling system, which distributes pressure evenly to eliminate "water ripple" effects on thin sheets; and permanent magnet synchronous motors, which reduce overall energy consumption by 15% compared to industry averages .

Compared to traditional manual or semi-automated lines, Ruilin’s solution boosts production efficiency by 40%, cuts labor requirements by 50–70%, and reduces material scrap by 3–5% .

Key Technical Specifications

All parameters are tested under international metal processing standards, with customizable options for special applications:

Core Competitive Advantages

1. Ultra-High Precision: Servo-driven systems deliver ±0.05mm cutting tolerance and ≤0.03mm/m flatness, eliminating post-processing needs and reducing scrap by 3–5% .

2. Broad Material Compatibility: Lines process thin steel plates as well as special materials like high-strength steel, titanium alloys, and ultra-thin aluminum foils, adapting to diverse industry needs .

3. Energy Efficiency: Permanent magnet synchronous motors and energy recovery systems cut annual electricity costs by over ¥300,000 per line, reducing operational expenses significantly .

Technical FAQ

Q: What is the cutting precision of your CNC transverse cutting lines for thin steel plates? A: Our servo-driven lines achieve ±0.05mm length tolerance and ≤0.03mm/m flatness, 40% more efficient than traditional equipment .

Q: Can you customize lines for special materials or production needs? A: Yes, we offer both OEM and ODM services, with modular design to adapt to multi-variety, small-batch production and special material processing .

Q: How many workers are needed to operate the line? A: Only 1-2 workers are required due to fully automated operation, reducing labor costs by 50–70% .
