Split Hydraulic Transverse Cutting Lines Technical Insights from Zibo Ruilin Machinery China

This technical article provides a comprehensive standard-compliant overview of split hydraulic transverse cutting lines, developed and manufactured by Zibo Ruilin Machinery Co., Ltd. As a specialized supplier in metal processing machinery with proven technical heritage from Taiwan, we serve over 500 global clients across industries like automotive, new energy, and home appliances. Our split hydraulic transverse cutting lines are innovative automated solutions designed to address core industry pain points including sheet warping, surface scratches, and inefficient changeovers. Adhering to international standards such as ASTM and ISO, our products achieve breakthroughs in cutting precision and operational efficiency, with verified performance in high-volume stamping, battery component manufacturing, and structural part production.

Technical Definition

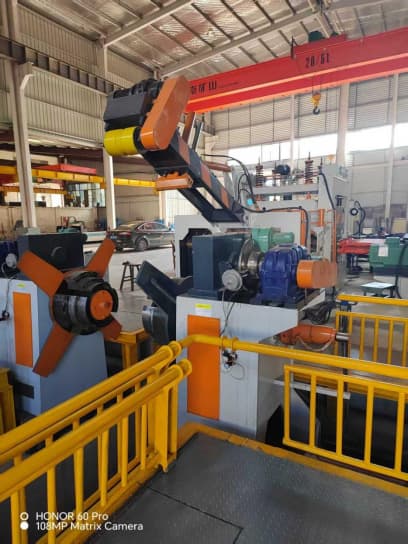

Split hydraulic transverse cutting lines are automated production systems that uncoil, level, and shear metal coils into flat sheets of specified lengths using hydraulic shearing technology, supported by servo-driven positioning and PLC control. Based on precision mechanical design and intelligent automation, these lines deliver high-accuracy, high-efficiency sheet processing, serving as critical equipment for modern metal fabrication facilities.

Main Categories: 1. 1×1250MM Cut-to-length Line: High-precision ultra-thin sheet series, ideal for 3C electronics and NEV battery components, featuring scratch-free processing and micro-bending stress elimination. 2. 3×1650MM Cut to length Line: Medium-gauge sheet series, suitable for automotive structural parts and home appliances, offering integrated edge trimming and multi-material compatibility. 3. 6×2000MM Servo Cut-to-length Line: Heavy-duty sheet series, designed for heavy equipment and shipbuilding, supporting wide thick plate blanking with automated loading.

Design Philosophy: Our products prioritize high precision, efficiency, durability, and customization, adhering to full-life cycle reliability standards to provide stable, low-maintenance solutions for industrial scenarios.

Technical Principles

The core working principle combines hydraulic shearing with servo positioning technology. The complete workflow includes: 1. Uncoiling and tension control to ensure stable material feeding; 2. Multi-roll leveling to eliminate internal stress and flatten sheets; 3. Servo system to accurately position sheet length; 4. Hydraulic shearing to achieve burr-free cutting.

Core Architecture & Innovative Design: - Servo Positioning Module: Uses advanced PLC control to achieve length tolerance within ±0.05mm, ensuring cutting accuracy. - Multi-Roll Leveling Module: Six-high structure eliminates sheet warping and water ripple effects common in traditional machines. - Hydraulic Shearing Module: Precision hydraulic systems deliver clean, burr-free edges, eliminating secondary processing needs.

Comparison with Traditional Solutions: Unlike conventional mechanical cutting lines, our split hydraulic transverse cutting lines reduce changeover time from 2 hours to 30 minutes via modular design, and improve material utilization by 3-5% through precise tension control, solving long-standing industry issues of low efficiency and high waste.

Core Technical Advantages

1. High Precision & Low Scrap Rate Technical Support: Servo-driven positioning and six-high leveling structure; compliant with ASTM precision standards. Verified Data: Cutting tolerance of ±0.05mm, flatness ≤0.03mm/m, reducing material scrap by 3-5%. Customer Value: Improves product qualification rates and cuts raw material costs significantly.

2. Efficient Changeover & Automation Technical Support: Modular component design and PLC one-click parameter storage. Verified Data: Changeover time reduced to 30 minutes, requiring only 1-2 operators per line. Customer Value: Adapts to multi-variety, small-batch production demands while lowering labor costs.

3. Energy Efficiency & Durability Technical Support: Permanent magnet synchronous motors and high-strength alloy components. Verified Data: 15% lower energy consumption than industry average, reducing annual electricity costs by over ¥300,000 per line. Customer Value: Minimizes operational costs and unplanned downtime due to component wear.

Technical Parameters & Specification Standards

All parameters are tested in strict accordance with ISO and ASTM standards, with clear test conditions and tolerance controls. We provide full parameter test reports for each batch and support third-party certification. Key parameters include:

Core Performance: - Cutting Tolerance: ±0.05mm (tested at 25℃ with carbon steel) - Leveling Flatness: ≤0.03mm/m (tested with 1mm thick sheet) - Maximum Line Speed: Up to 260m/min (depending on material thickness)

Material Compatibility: - Thickness Range: 0.1–20mm - Width Range: 30–2200mm - Compatible Materials: Carbon steel, stainless steel, titanium alloys, ultra-thin aluminum foils
