This technical article provides a comprehensive, standard-compliant analysis of slitting lines developed by Zibo Ruilin Machinery Co., Ltd. As a dedicated metal processing machinery manufacturer founded in 2023 with full-process R&D and production capabilities, we specialize in precision slitting lines serving automotive, home appliances, new energy, and steel service center sectors. Our slitting lines effectively solve industry pain points including frequent downtime from single-recoiler changeovers, edge burrs, and tension instability. Built on servo closed-loop tension control technology, our products meet strict precision standards and support customizable solutions. To date, we have served over 500 global clients, with products validated in high-volume stamping, structural roll-forming, and tube-making scenarios .
A slitting line is a specialized metal processing system that uncoils, slits, and recoils wide metal coils into narrow strips with precise width tolerances, based on servo closed-loop tension control technology. It enables high-speed, stable processing for diverse industrial applications, serving as a critical feedstock preparation solution for metal fabrication sectors .
Main Classifications
- 0.14-1×1250MM Double Recoiler Slitting Line: High-precision ultra-thin material series, ideal for metal service centers and automotive stamping plants, featuring seamless dual-coil switching to eliminate production downtime .
- 3×1650MM Slitting and Cut-to-Length Compound Line: Integrated processing series for large steel service centers, combining slitting and cut-to-length functions to reduce factory footprint by up to 40% .
Design Philosophy
Our slitting lines are designed around high precision, low downtime, energy efficiency, and customizable scalability, adhering to full-life cycle reliability standards to deliver stable, cost-effective solutions for industrial scenarios .
The core working principle of our slitting lines is based on servo closed-loop tension control, ensuring consistent material tension throughout the processing chain . The full operational flow includes: 1. Uncoiling: Servo-driven uncoilers feed coils evenly with adjustable tension to prevent material deformation.

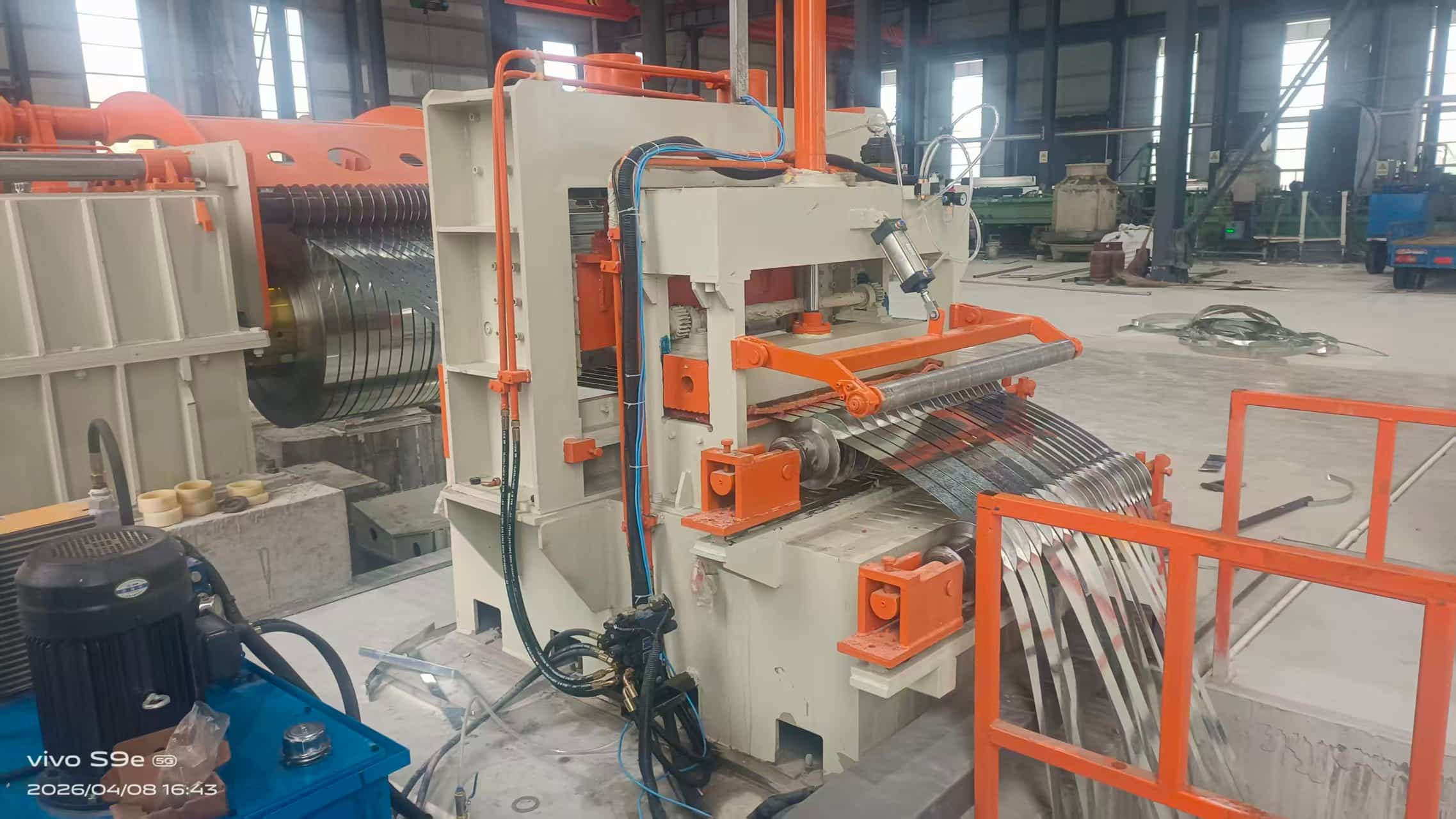

2. Slitting: Precision rotary knives with real-time tension adjustment produce burr-free edges and consistent width tolerances.

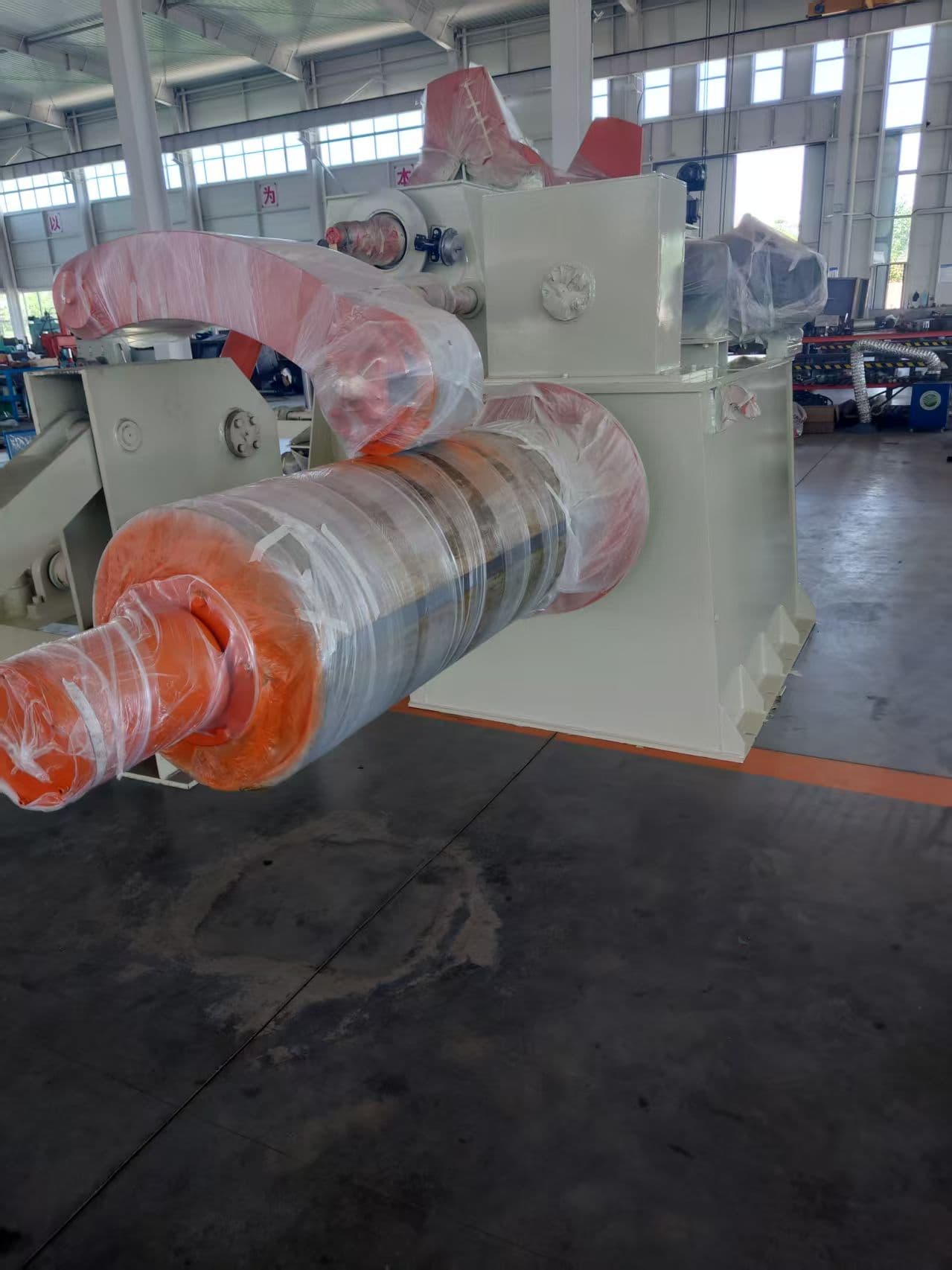

3. Recoiling: Dual recoiler systems enable seamless coil switching without stopping production.
Core Architecture & Innovative Design
- Servo Tension Control Module: Maintains constant tension to avoid material stretching or deviation, supporting processing of thin foils to thick steel plates .
- Modular Knife Assembly: Standardized interfaces reduce changeover time from 2 hours to 30 minutes, adapting to multi-variety, small-batch production .
Comparison with Traditional Solutions
Unlike traditional open-loop tension control systems that cause edge burrs and material deformation, our closed-loop control ensures ±0.05mm width tolerance. Dual recoiler systems increase overall equipment effectiveness (OEE) by up to 30% compared to single-recoiler lines .
All parameters are tested in accordance with ASTM metal processing standards, with clear testing conditions and strict tolerance control. We provide full parameter test reports for each batch and support third-party certification .
Parameter Category | Core Parameter | Standard Indicator | Testing Condition | Selection Reference |
|---|---|---|---|---|
Processing Capability | Material Thickness | 0.1–20mm | 25℃ room temperature, standard steel coils | Choose series based on your material thickness range |
Precision & Efficiency | Width Tolerance | ±0.05mm | Stable tension control, standard blade setup | Ensure downstream process quality requirements are met |
Max Line Speed | Up to 260m/min | Medium-gauge steel coils | Select based on production volume needs | |
Energy Performance | Energy Consumption | 15% lower than industry average | 24/7 continuous operation | Ideal for cost-conscious high-volume production |
High Precision & Low Downtime
Supported by servo closed-loop tension control and dual recoiler systems, our slitting lines maintain ±0.05mm width tolerance and increase OEE by up to 30%. This reduces raw material scrap by 3-5% and eliminates downtime from coil changeovers .
Broad Material Compatibility
Our lines stably process materials from 0.1mm ultra-thin aluminum foils to 20mm thick high-strength steel, including titanium alloys. This versatility supports multi-material production without additional equipment investment .
Energy Efficiency
Utilizing permanent magnet synchronous motors and energy recovery systems, our lines reduce comprehensive energy consumption by 15% compared to the industry average, saving over ¥300,000 in annual electricity costs per line .
Q: What is the width tolerance of your slitting lines?
A: Our slitting lines maintain strict width tolerances down to ±0.05mm, supported by servo closed-loop tension control systems, ensuring consistent strip quality for downstream stamping or welding processes .
Q: Can you provide customized slitting line solutions?
A: Yes, we offer tailored solutions for non-standard requirements, including custom material thickness, width, and processing functions, based on your specific production scenarios .
Q: What after-sales support do you provide?
A: We offer a 12-month warranty, free replacement of defective parts (excluding shipping costs), lifetime technical support, and on-site installation and operator training services .
