This technical article provides a comprehensive, standard-compliant overview of stainless steel slitting lines, developed and manufactured by Zibo Ruilin Machinery Co., Ltd. As a leading supplier in the metal processing machinery sector with years of R&D and industrial application experience, we focus on delivering high-performance equipment to drive industry advancement. Our stainless steel slitting lines are precision-engineered for steel service centers, automotive manufacturers, home appliance producers, and precision hardware fabricators, solving core industry pain points including edge burrs, tension instability, and frequent downtime. Leveraging proprietary constant tension slitting technology and modular design, our products adhere to international metal processing standards, serving over 500 global clients across automotive, new energy, and construction sectors.
A stainless steel slitting line is a precision metal processing device that uncoils, slits, and recoils stainless steel coils into narrow strips of specified widths, based on servo closed-loop tension control technology to ensure consistent precision and material integrity. As a critical component in sheet metal processing, it enables efficient feedstock preparation for stamping, roll-forming, and tube-making operations across multiple industries.
To meet diverse operational needs, our product portfolio includes customizable standard and specialized series: 1. 2×1250MM Slitting Line: High-precision standard series for thin-to-medium gauge coils, delivering ±0.05mm width tolerance and 120m/min processing speed, ideal for automotive battery casing production. 2. 3×1650MM Slitting and Cut-to-Length Compound Line: Integrated processing series combining slitting and cut-to-length functions, reducing factory footprint by up to 40% for large-scale steel service centers. 3. 0.14-1×1250MM Double Recoiler Slitting Line: High-efficiency series for ultra-thin foils, enabling seamless dual-coil switching to increase overall equipment effectiveness (OEE) by up to 30%.
Our slitting lines are designed around core principles of high precision, stability, low material loss, and easy maintenance, with integral welded frames and stress-relief treatment to support 24/7 continuous heavy-duty operation.

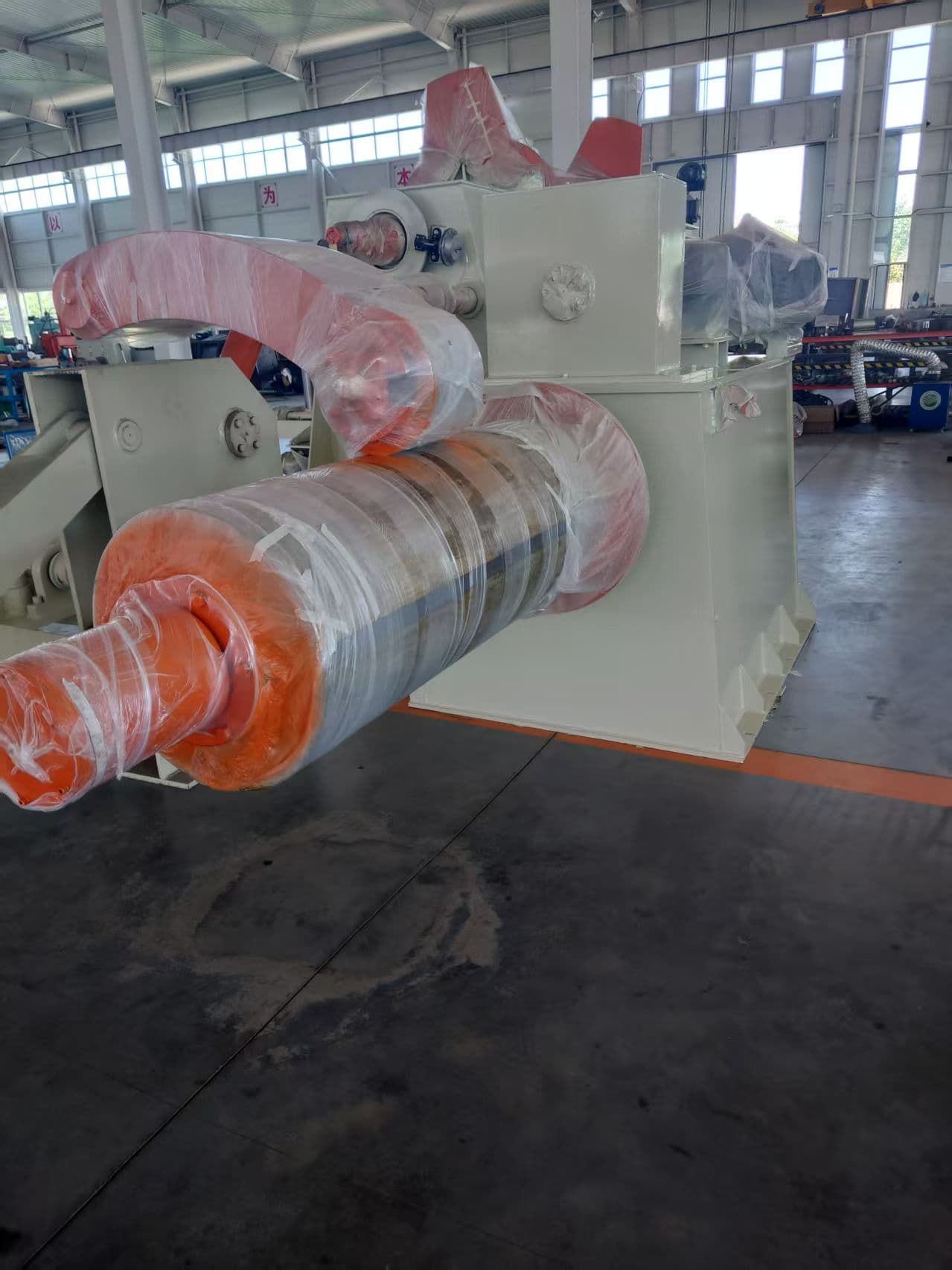

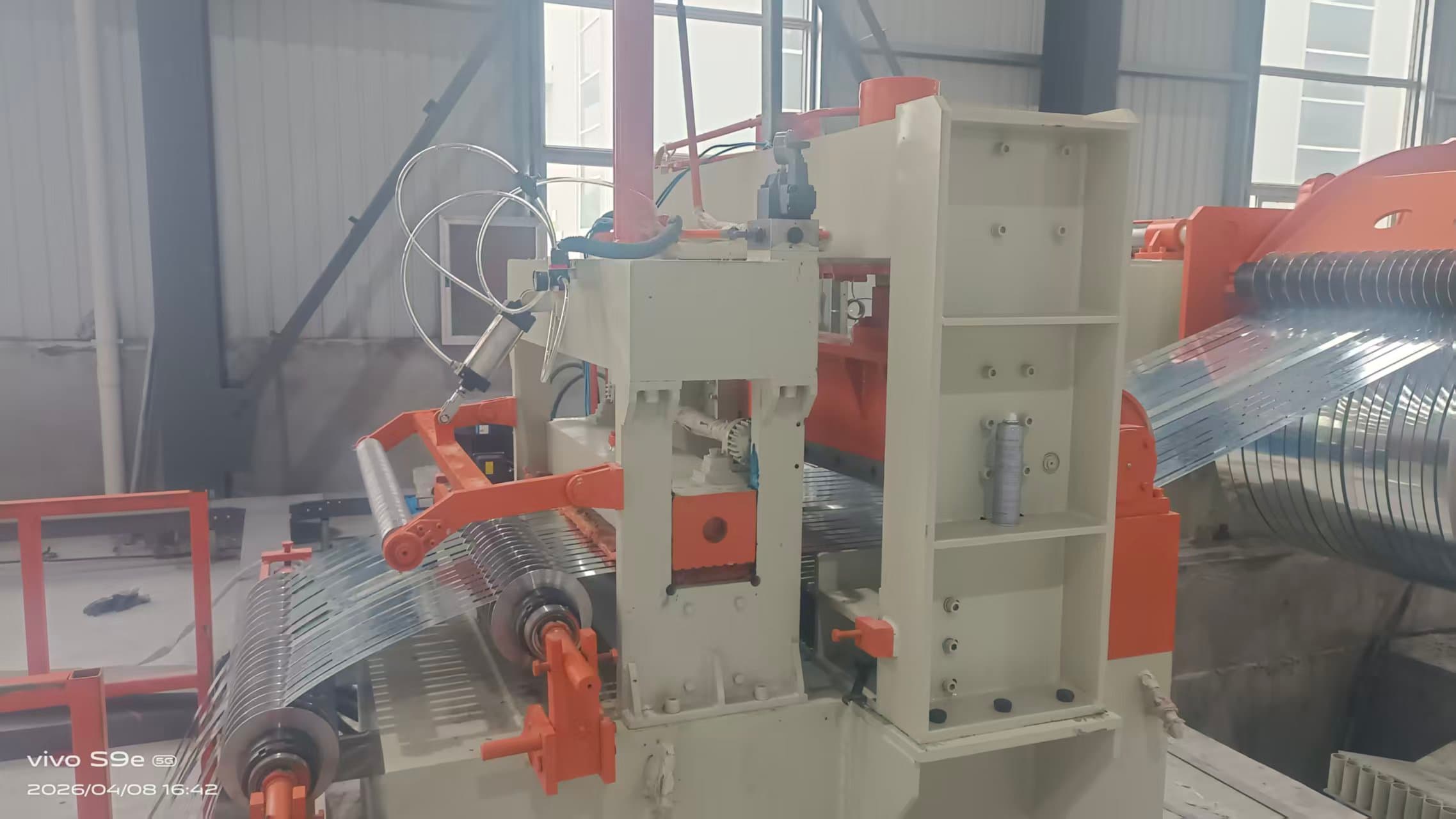

The core working principle of our stainless steel slitting lines is based on servo closed-loop tension control, which maintains consistent tension throughout the entire processing chain. The operational process follows three key steps: 1. Uncoiling: The uncoiler stably feeds the stainless steel coil, with tension sensors real-time monitoring material tension to prevent slack or stretching. 2. Slitting: Precision rotary knives cut the coil into narrow strips, with the servo system adjusting tension dynamically to ensure clean, burr-free edges. 3. Recoiling: The recoiler synchronizes with the slitting process to wind strips into tight, uniform coils without telescoping or scratches.
Two key modular components drive our product’s performance: 1. Tension Control Module: A closed-loop servo system that eliminates tension instability, ensuring thin materials do not stretch and thick materials do not deviate during processing. 2. Quick-Change Tooling: Standardized interfaces reduce blade changeover time from 2 hours to 30 minutes, adapting to multi-variety, small-batch production needs.
Compared to traditional slitting lines, our technology addresses long-standing industry pain points: 1. Traditional lines often produce edge burrs due to poor tension control; our servo system ensures burr-free edges, eliminating secondary trimming needs. 2. Manual blade adjustments cause frequent downtime; our quick-change design reduces changeover time by 75%, boosting overall production efficiency.
All parameters are tested in accordance with international metal processing standards, with clear tolerance controls and customizable options for special requirements.
Parameter Category | Core Parameter | Standard Indicator | Testing Conditions | Selection Reference |
|---|---|---|---|---|
Processing Performance | Material Thickness Range | 0.1–20mm | Room temperature, standard stainless steel coils | Choose based on raw material thickness requirements |
Processing Performance | Material Width Range | 30–2200mm | Room temperature, standard stainless steel coils | Match with coil width and target strip width |
Processing Performance | Width Tolerance | ±0.05mm | Continuous 8-hour operation | Critical for high-precision downstream processes |
Processing Performance | Maximum Line Speed | Up to 260m/min | Thin gauge materials (≤1mm) | Select based on production volume requirements |
Energy Efficiency | Energy Consumption | 15% lower than industry average | Continuous full-load operation | Ideal for cost-sensitive high-volume production |
Our stainless steel slitting lines offer verifiable, value-driven advantages validated by global client applications: 1. High Precision & Low Material Waste Technical Support: Servo closed-loop tension control and precision rotary knives; Performance Data: ±0.05mm width tolerance, 3-5% reduction in raw material scrap; Customer Value: Eliminates secondary trimming and reduces material costs, improving overall production yield. 2. Efficient & Flexible Production Technical Support: Modular quick-change design and dual-recoiler system; Performance Data: 30-minute changeover time, up to 30% higher OEE; Customer Value: Adapts to multi-variety, small-batch production while maintaining high throughput. 3. Energy Saving & Durability Technical Support: Permanent magnet synchronous motors and energy recovery systems; Performance Data: 15% lower energy consumption, ≤1.5% annual failure rate; Customer Value: Reduces annual electricity costs by over ¥300,000 and minimizes maintenance downtime.
Our slitting lines are designed, manufactured, and tested in compliance with global metal processing standards including ASTM, ISO, and EN, ensuring compatibility with international market requirements. We provide comprehensive documentation including factory test reports and third-party inspection certificates upon request, supporting clients’ regulatory compliance needs.
Q: What is the width tolerance of your stainless steel slitting lines? A: Our slitting lines maintain strict width tolerances down to ±0.05mm, with burr-free edges ensured by servo closed-loop tension control. Q: Do you provide overseas installation and commissioning services? A: Yes, we dispatch experienced engineers to your site for complete installation, debugging, and operator training until the line runs smoothly. Q: Can you customize slitting lines for special requirements? A: We offer customized solutions based on your material thickness, width, output, and process needs, fully supporting non-standard personalized customization. Q: How many workers are needed to operate the machine? A: Only 1-2 workers are required to operate our fully automated PLC/HMI-controlled slitting lines.
