This technical article provides a comprehensive, standard-compliant analysis of copper strip slitting lines developed by Zibo Ruilin Machinery Co., Ltd. As a leading supplier in metal processing machinery with proven technical heritage from Taiwan, we have served over 500 global clients since 2023 . Our copper strip slitting lines are tailored for steel/aluminum service centers, automotive parts manufacturers, and precision hardware fabricators, addressing core industry pain points including edge burrs, material waste, and unplanned downtime . Leveraging servo-driven precision and modular design, our solutions achieve strict width tolerances of ±0.05mm and boost production efficiency by up to 40% compared to traditional equipment .
A copper strip slitting line is a specialized metal processing system that uncoils, cuts, and recoils wide copper coils into narrow, precise strips for downstream manufacturing processes, based on servo closed-loop tension control technology to ensure consistent quality . As a critical component in metal fabrication, it enables efficient feedstock preparation for stamping, roll-forming, and tube-making applications .
To meet diverse industry needs, Zibo Ruilin Machinery offers customizable slitting line series: 1. 2×1250MM Slitting Line: High-precision standard series for thin-to-medium gauge copper strips, ideal for automotive battery casing production, with a maximum speed of 120m/min ; 2. 0.14-1×1250MM Double Recoiler Slitting Line: Ultra-thin material optimized series with seamless dual-coil switching, designed for high-volume electronics stamping applications .
Our slitting lines are engineered with core principles of high precision, stability, low material loss, and easy maintenance, adhering to full-life cycle reliability standards to withstand continuous industrial operation .

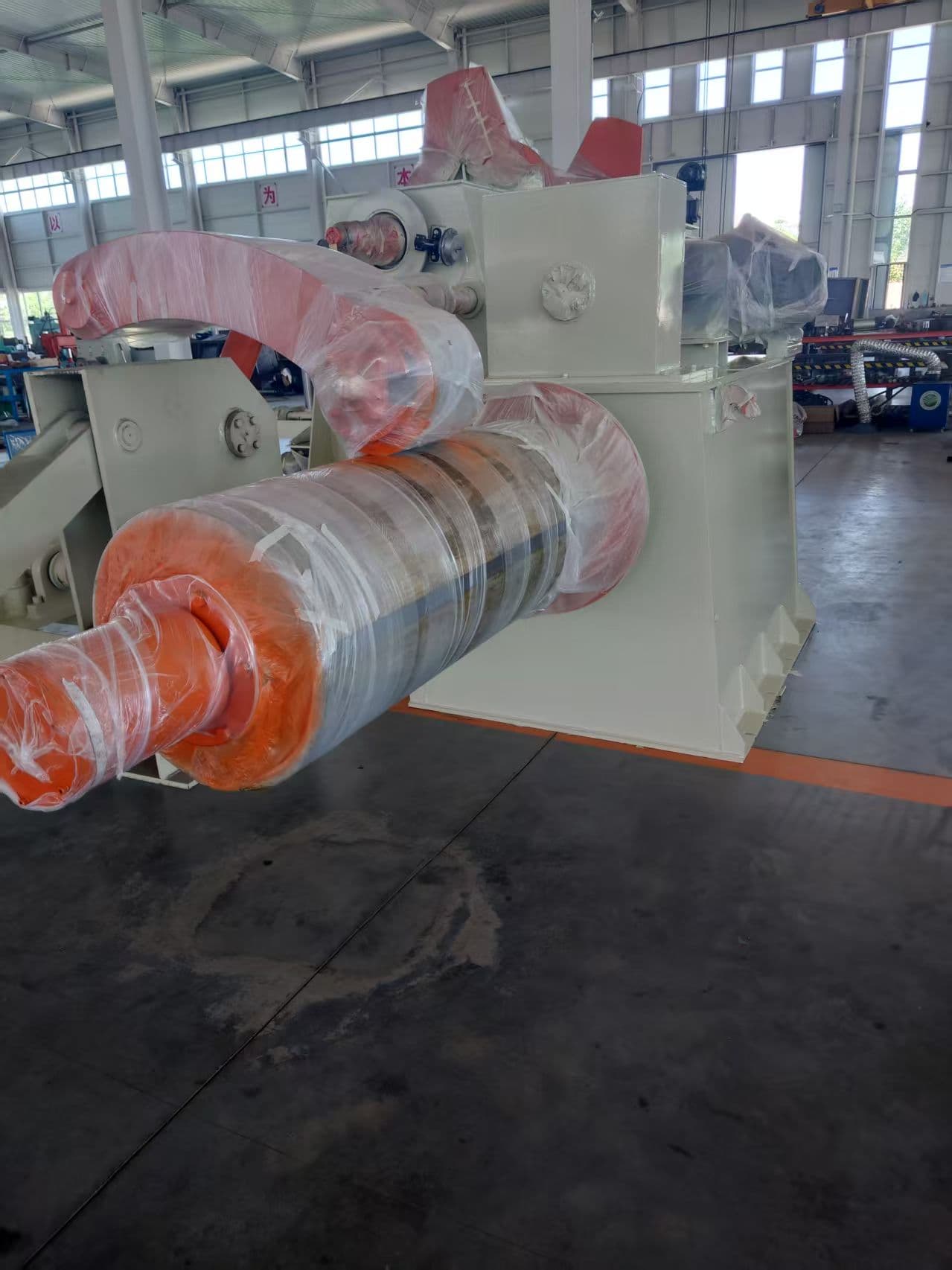

The core working principle of our copper strip slitting lines relies on servo closed-loop tension control, which maintains consistent force across the entire processing chain . The complete workflow includes: 1. Uncoiling: Automated coil loading and alignment to ensure proper material feed; 2. Tension Control: Real-time adjustment of servo motors to eliminate material stretching or deviation; 3. Precision Slitting: Rotary knife cutting with ±0.05mm width tolerance; 4. Recoiling: Uniform winding of finished strips without telescoping or scratches .

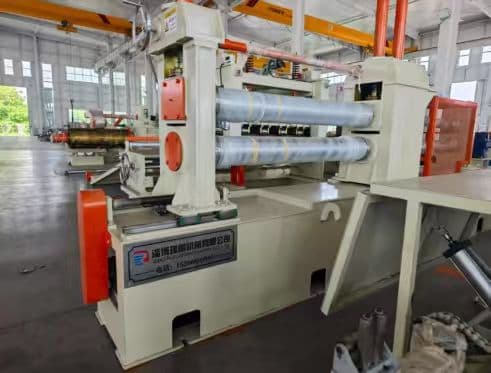

Key modular components include: 1. Servo Tension Control Module: Closed-loop system that adjusts tension dynamically, preventing edge burrs and material deformation ; 2. Precision Rotary Knife Group: Hardened steel blades with optimized alignment to reduce edge trim waste by 2-4% .
Compared to traditional hydraulic slitting lines, our solutions eliminate manual blade adjustments, reducing downtime by 75% and cutting labor costs by up to 40% . Our servo-driven precision also reduces material scrap by 3-5%, delivering significant cost savings for clients .
All parameters are tested according to ASTM metal processing standards, with clear tolerance controls and full testing reports available upon request .
Parameter Category | Core Parameter | Standard Indicator | Test Conditions | Selection Reference |
|---|---|---|---|---|
Core Performance | Width Tolerance | ±0.05mm | 25℃, 50% humidity | Choose based on downstream component precision requirements |
Core Performance | Maximum Speed | Up to 260m/min | 1mm thick copper strip | Select for high-volume production needs |
Material Compatibility | Thickness Range | 0.1-20mm | Copper, high-strength steel, aluminum | Match with raw material thickness specifications |
Mechanical Characteristics | Changeover Time | 30 minutes | Modular component replacement | Ideal for multi-variety, small-batch production |
Note: Customized parameters are available for special application scenarios .
1. Industry-Leading Precision & Efficiency: Supported by servo-driven technology and Taiwanese manufacturing heritage, our lines achieve ±0.05mm width tolerance and boost production efficiency by 40% compared to traditional equipment, reducing material scrap by 3-5% . This translates to annual raw material cost savings of up to 5% for clients.
2. Broad Material Compatibility: Our lines stably process copper strips from 0.1mm to 20mm thick, as well as special materials like titanium alloys and ultra-thin aluminum foils, eliminating the need for multiple specialized machines .
3. Energy Efficiency: Utilizing permanent magnet synchronous motors, our systems consume 15% less energy than industry averages, saving over $4,200 in annual electricity costs per line .
Q: What is the width tolerance of your copper strip slitting lines? A: Our slitting lines achieve strict width tolerances down to ±0.05mm, supported by servo closed-loop tension control to ensure consistent strip quality .
Q: How many workers are required to operate the line? A: Only 1-2 workers are needed, thanks to fully automated PLC/HMI operation that reduces labor costs by up to 40% .
Q: Do you provide overseas installation and commissioning services? A: Yes, we dispatch experienced engineers to your site for full installation, debugging, and operator training until the line runs smoothly .
