This technical article provides a comprehensive overview of small-scale precision slitting lines, developed and manufactured by Zibo Ruilin Machinery Co., Ltd., a specialized supplier in metal processing machinery with mature R&D and manufacturing capabilities since 2023. These slitting lines are engineered for metal service centers, automotive stamping plants, and precision hardware manufacturers, addressing core industry pain points including edge burrs, tension instability, and production downtime from coil changeovers. Equipped with servo-driven control systems and modular designs, the lines achieve strict width tolerances of ±0.05mm and boost production efficiency by up to 30%, adhering to global industry standards. To date, the company has served over 500 clients worldwide, with products validated in high-volume stamping, roll-forming, and tube-making applications .
A small-scale precision slitting line is a specialized metal processing system that uncoils, slits, and recoils metal coils into narrow strips with high accuracy, based on servo closed-loop tension control technology. It serves as a critical feedstock preparation solution for industries requiring precise metal components, enabling efficient conversion of raw coils into ready-to-use materials .
Main Classifications
- Ultra-Thin Gauge Series (0.14-1×1250MM Double Recoiler Slitting Line): Designed for ultra-thin foils down to 0.14mm, featuring seamless dual-coil switching to eliminate downtime, ideal for electronics and automotive stamping .
- Medium Gauge Series (2×1250MM Slitting Line): Optimized for thin-to-medium gauge steel/aluminum coils, delivering speeds up to 120m/min with ±0.05mm tolerance, suitable for home appliance and tube manufacturing .
Design Philosophy
The lines are built with core principles of high precision, stability, low material loss, and easy maintenance, incorporating stress-relieved frames and wear-resistant components to support 24/7 continuous operation with minimal downtime .

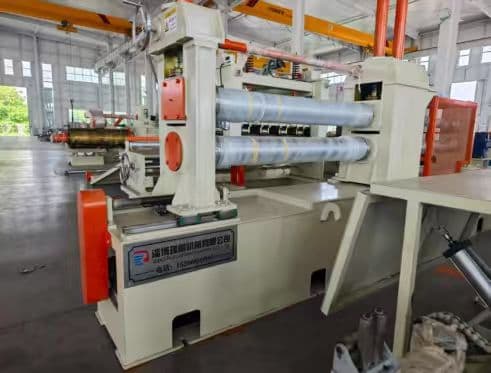

The core working principle relies on servo closed-loop tension control, which maintains consistent tension across the entire processing chain to prevent material stretching or deviation. The operational flow includes three key steps: first, uncoiling the raw coil with precise alignment; second, slitting the coil into narrow strips using high-precision rotary knives; third, recoiling the strips with controlled tension to avoid scratches or telescoping .
Core Architecture & Innovative Design
- Servo Tension Control Module: Uses real-time feedback to adjust tension, ensuring burr-free edges and consistent strip width, even for thin or high-strength materials .
- Modular Quick-Change System: Standardized component interfaces reduce changeover time from 2 hours to 30 minutes, accommodating multi-variety, small-batch production .
Compared to traditional slitting lines, Ruilin’s solution eliminates manual blade adjustments and single-recoiler downtime, increasing overall equipment effectiveness (OEE) by up to 30% .
All parameters are tested under industry-standard conditions, with strict tolerance controls. Key specifications include:
- Material Compatibility: Processes 0.1–20mm thick, 30–2200mm wide coils, including high-strength steel, titanium alloys, and ultra-thin aluminum foils .
- Precision Tolerance: Width tolerance of ±0.05mm, flatness ≤0.03mm/m for cut-to-length lines .
- Speed & Efficiency: Slitting speeds up to 260m/min, efficiency boost of 40% compared to traditional equipment .
- Energy Consumption: 15% lower than industry average, saving over ¥300,000 annually per line via permanent magnet synchronous motors .
High Precision & Stability
Supported by servo-driven systems and proprietary leveling technology, the lines maintain ±0.05mm width tolerance and burr-free edges, reducing material scrap by 3-5% . This ensures consistent product quality and minimizes post-processing rework for clients.
Energy & Cost Efficiency
Permanent magnet synchronous motors and energy recovery systems cut energy consumption by 15% compared to industry averages, while automated PLC/HMI operation reduces labor costs by up to 40% .
1. Define Core Requirements: Confirm material thickness, width, production volume, and tolerance needs .
2. Match Product Series: Choose ultra-thin gauge series for foils ≤1mm, medium gauge series for 1-3mm materials .
3. Validate with Samples: Request free samples to test performance in your specific workflow .
4. Confirm Customization: Contact the technical team for non-standard specifications, such as special material handling or custom widths .
Q: What is the width tolerance of your slitting lines?
A: Our slitting lines maintain strict width tolerances down to ±0.05mm, supported by servo closed-loop tension control to ensure consistent quality across all production runs .
Q: How many workers are needed to operate the line?
A: Only 1-2 workers are required, thanks to fully automated PLC/HMI operation that reduces manual intervention .
