This technical article provides a comprehensive, standard-compliant analysis of variable frequency slitting lines developed by Zibo Ruilin Machinery Co., Ltd. As a leading Chinese provider of metal processing machinery with advanced R&D and manufacturing capabilities, we serve over 500 global clients across automotive, new energy, and home appliance sectors . Our variable frequency slitting lines are automated solutions designed to address core industry pain points such as production downtime from coil changeovers, tension instability, and material waste. Equipped with servo-driven frequency control, our lines deliver ±0.05mm width tolerance, speeds up to 260m/min, and 15% lower energy consumption than industry averages, complying with international manufacturing standards .
Variable frequency slitting lines are automated metal processing systems that use variable frequency drive (VFD) technology to precisely control tension and speed, cutting wide metal coils into narrow strips for downstream manufacturing . As a critical component in sheet metal processing, these lines enable high-precision, efficient production for industries requiring consistent strip dimensions.
Main Categories
1. 0.14-1×1250MM Double Recoiler Slitting Line: High-precision series for ultra-thin materials (down to 0.14mm), ideal for electronics and automotive stamping plants, featuring seamless dual-coil switching .
2. 2×1400MM Slitting Line: Medium-to-thick gauge series for wide coils, optimized for EV battery casing and heavy-duty appliance production, with ±0.05mm tolerance .
3. 3×1250MM Slitting Line: Heavy-duty series for tube and pipe manufacturing, delivering 40% higher output than traditional lines .
Design Philosophy: Our lines prioritize high precision, energy efficiency, modularity, and durability, adhering to full-life cycle reliability standards to meet harsh industrial demands .
The core working principle of our variable frequency slitting lines relies on servo-driven closed-loop tension control with variable frequency adjustment .
1. Input: Wide metal coils are loaded onto the uncoiler, with VFD adjusting uncoiling speed to match downstream processing.
2. Processing: Tension sensors real-time feedback data, and the servo system dynamically adjusts frequency to maintain stable tension, preventing material deformation or stretching.

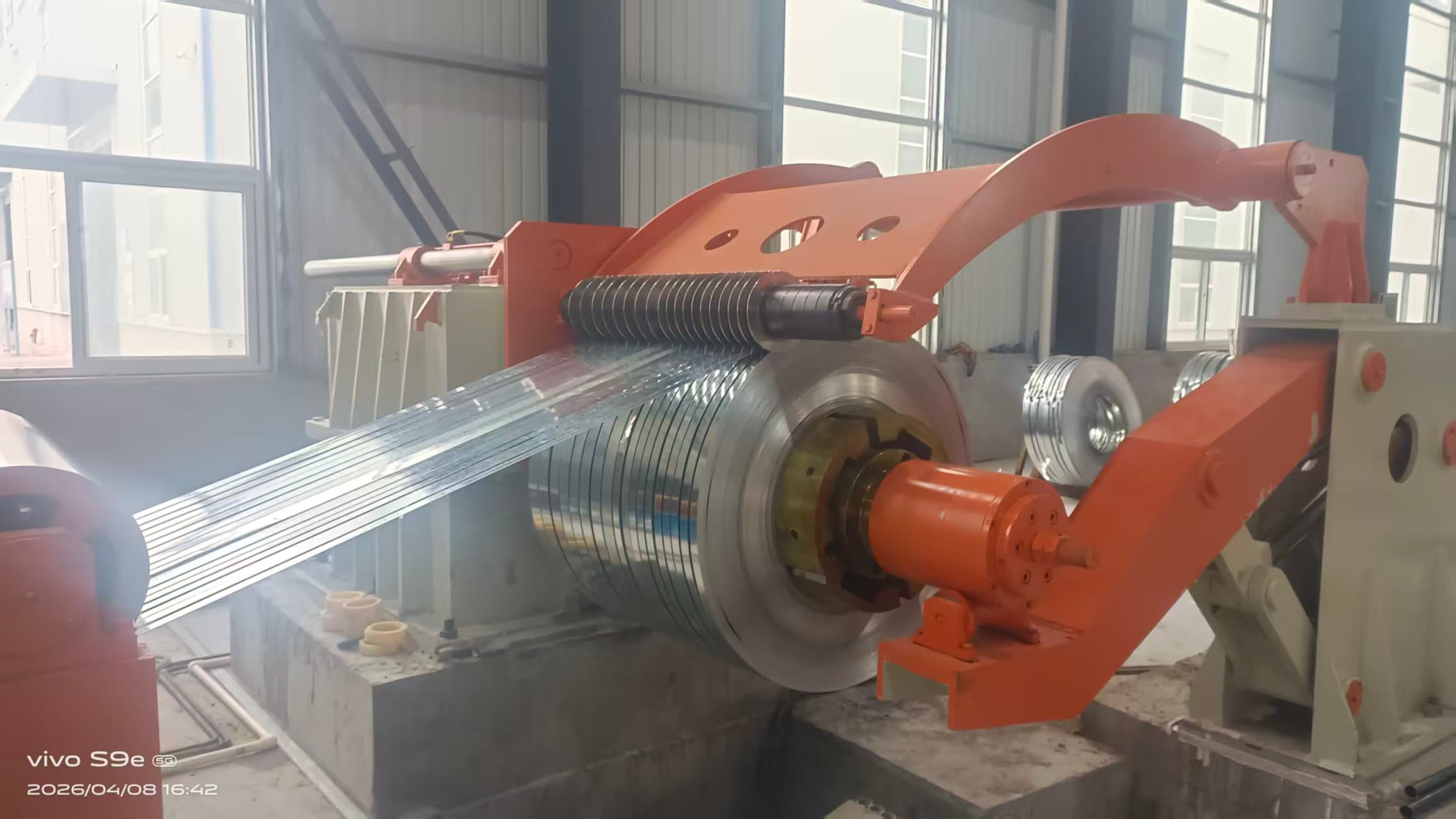

3. Output: High-precision rotary knives cut coils into narrow strips, with VFD-controlled recoiling ensuring uniform strip winding .
Core Architecture & Innovation
1. Variable Frequency Servo Module: Enables precise speed and tension control, reducing energy consumption by 15% compared to fixed-speed systems .
2. Modular Changeover System: Standardized interfaces cut coil changeover time from 2 hours to 30 minutes, supporting multi-variety, small-batch production .
vs. Traditional Solutions: Unlike fixed-speed lines with frequent downtime and poor tension control, our variable frequency lines boost efficiency by 40%, reduce scrap by 3-5%, and eliminate edge burrs .
All parameters are tested per international manufacturing standards, with full test reports available upon request .
Core Performance Parameters
- Material Thickness Range: 0.1–20mm
- Material Width Range: 30–2200mm
- Slitting Tolerance: ±0.05mm
- Maximum Line Speed: 260m/min
- Energy Consumption: 15% lower than industry average
Electrical Parameters
- Control System: PLC/HMI with servo-driven frequency control
Mechanical Parameters
- Frame: Integrally welded, stress-relieved structure
- Changeover Time: 30 minutes (modular design) .
1. Precision Tension Control
Technical Support: Servo-driven closed-loop frequency control system
Quantifiable Data: ±0.05mm slitting tolerance, 3-5% reduction in material scrap
Customer Value: Improved product qualification rates, reduced post-processing costs .
2. Energy Efficiency
Technical Support: Permanent magnet synchronous motors + energy recovery system
Quantifiable Data: 15% lower energy consumption, ¥300,000 annual electricity cost savings per line
Customer Value: Long-term operational cost reduction .
3. Modular Flexibility
Technical Support: Standardized component interfaces
Quantifiable Data: 30-minute changeover time, 40% higher production efficiency
Customer Value: Adaptability to multi-variety, small-batch production demands .
Our variable frequency slitting lines are designed and manufactured in compliance with ISO 9001 quality management standards, ASTM metal processing specifications, and EN mechanical safety regulations . We provide third-party testing reports (SGS/TÜV) and material certificates to meet global market access requirements. OEM/ODM services are available to align with specific regional compliance standards .
Q: What is the slitting tolerance of your variable frequency slitting lines?
A: Our lines maintain a strict width tolerance of ±0.05mm, supported by servo-driven frequency control systems .
Q: Can you customize lines for special materials?
A: Yes, we support processing of high-strength steel, titanium alloys, and ultra-thin aluminum foils, with thickness ranges from 0.1–20mm .
Q: How long does coil changeover take?
A: Our modular design reduces changeover time from 2 hours to just 30 minutes .
Q: Do you provide overseas after-sales support?
A: We offer 7×24-hour remote support, on-site service within 24–48 hours in major regions, and a 12-month warranty .
