This technical article delivers a standard-compliant analysis of high-precision transverse cutting production lines (cut-to-length, CTL) developed by Zibo Ruilin Machinery Co., Ltd. As a specialized metal processing machinery provider with Taiwan-honed technical heritage, we serve over 500 global clients across automotive, new energy, and home appliance sectors. Our CTL lines resolve core industry pain points including sheet warping, surface scratches, and lengthy changeovers, adhering to ASTM and ISO metal processing standards. Key breakthroughs like servo-driven precision control and modular design boost efficiency by up to 40% vs. traditional equipment, with validated performance across ultra-thin 3C components to heavy-duty industrial plates.

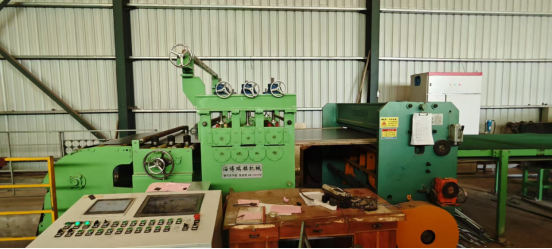

High-precision transverse cutting production lines (CTL) are automated systems that uncoil, level, and cut metal coils into specified-length flat sheets with extreme accuracy. Built on servo-driven control and PLC synchronous technology, they serve as critical core equipment for metal fabrication and advanced manufacturing. Main Classifications To meet diverse demands, our CTL lines include three customizable series: 1. Ultra-Thin Precision Series (1×1250MM CTL): Optimized for 0.2–2.0mm thin sheets, ideal for 3C electronics and NEV battery components, featuring non-destructive processing to avoid surface damage. 2. Medium-Gauge Series (3×1650MM CTL): Handles 0.1–3mm thick coils, suitable for NEV structural parts and home appliance panels, with integrated edge trimming for precise dimensions. 3. Heavy-Duty Series (6×2000MM Servo CTL): Processes up to 6mm thick, 2000mm wide plates, designed for heavy equipment and shipbuilding, reducing labor costs by 50–70%. Design Philosophy Our CTL lines prioritize high precision, energy efficiency, modularity, and reliability, adhering to full-life-cycle design standards for stable, low-maintenance operation in harsh industrial environments.
The core working principle relies on servo-driven control and PLC synchronous coordination, creating a seamless processing chain: 1. Coil Loading & Uncoiling: Automated alignment and tension control prevent telescoping and surface scratches. 2. Multi-Roll Leveling: Six-high roller structure eliminates internal stress and sheet warping, achieving flatness ≤0.03mm/m. 3. Servo-Precision Cutting: Servo drives deliver ±0.05mm cutting accuracy for consistent length tolerances. 4. Automated Stacking: Finished sheets are neatly stacked for downstream processing. Core Architectural Innovations - Servo Drive Module: Delivers ±0.05mm precision, boosting production efficiency by 40% vs. traditional hydraulic systems. - Modular Leveling Module: Standardized interfaces enable 30-minute specification changeovers, down from 2 hours for conventional lines. Comparison with Traditional Solutions Unlike hydraulic-driven CTL lines, our servo systems offer 3x higher precision, 75% faster changeovers, and 15% lower energy consumption, resolving long-standing issues of poor accuracy and low efficiency.
All parameters are tested per ASTM and ISO standards, with clear test conditions: - Cutting Precision: ±0.05mm (tested at 25℃, rated voltage) - Flatness: ≤0.03mm/m (for 1mm thick steel sheets) - Material Compatibility: 0.1–6mm thickness, 30–2200mm width, including high-strength steel and titanium alloys - Energy Consumption: 15% lower than industry average, saving ¥300,000 annually per line - Changeover Time: 30 minutes (full specification changes) Customized parameters are available for specific customer requirements.
1. Ultra-High Precision & Efficiency: Servo control delivers ±0.05mm accuracy and 40% higher throughput, reducing material scrap by 3–5%. 2. Broad Material Compatibility: Stable processing of 0.1–6mm thick materials, including special alloys, eliminating the need for multiple specialized lines. 3. Fast Modular Changeover: 30-minute specification changes enable flexible multi-variety, small-batch production, reducing downtime by 75%.
Q: What is the cutting accuracy of your transverse cutting lines?
A: Our servo-driven CTL lines achieve ±0.05mm cutting precision and ≤0.03mm/m flatness, outperforming traditional hydraulic systems.
Q: Can your lines handle special materials like titanium alloys?
A: Yes, our CTL lines support stable processing of 0.1–6mm thick materials, including high-strength steel, titanium alloys, and ultra-thin aluminum foils.
Q: How long does it take to change over between different specifications?
A: Our modular design reduces changeover time from 2 hours to just 30 minutes, ideal for multi-variety, small-batch production.
Q: Do you provide overseas installation and commissioning services?
A: Absolutely, we dispatch experienced engineers to your site for full installation, debugging, and operator training until the line runs smoothly.
Q: Can you customize CTL lines for our specific needs?
A: Yes, we offer customized solutions based on your requirements for material thickness, width, output, and special processing needs.
