This technical article provides a comprehensive, standard-compliant analysis of coil transverse cutting production lines, developed and manufactured by Zibo Ruilin Machinery Co.,Ltd. As a leading supplier in metal processing machinery with expertise since 2023, we serve over 500 global clients, driving industry technological advancement. Our coil transverse cutting lines are innovative automated solutions tailored for new energy, automotive, home appliance, and steel structure sectors, solving core industry pain points including low cutting precision, material waste, and inefficient changeovers. Adhering to ASTM, ISO, and EN international standards, our products feature servo-driven precision and modular design, achieving critical technical breakthroughs in accuracy and efficiency. These solutions have been validated in global markets, earning recognition as high-reliability industrial equipment.
A coil transverse cutting production line is an automated system that uncoils, levels, and cuts metal coils into precise-length flat sheets, based on servo control and precision leveling technology, enabling high-volume, accurate processing for metal manufacturing industries. As a core component in metal processing, it is indispensable for feedstock preparation in automotive structural parts, new energy battery packs, and home appliance production.
Main Classifications To meet diverse industry needs, our product range includes customizable solutions: 1. 3×1650MM Cut to Length Line: High-precision heavy-gauge series for new energy vehicle battery packs and structural components, featuring ±0.05mm cutting tolerance
2. 1×1250MM Cut-to-length line: Ultra-thin sheet series for 3C electronics and precision hardware, with scratch-free processing for delicate materials
3. Slitting and Cut to Length Compound Line: Integrated series combining slitting and cutting functions, reducing factory footprint by up to 40%
Design Philosophy Our products follow the core design principles of high precision, efficiency, energy savings, and modularity, adhering to full-life-cycle reliability standards to deliver stable, cost-effective solutions for harsh industrial environments.

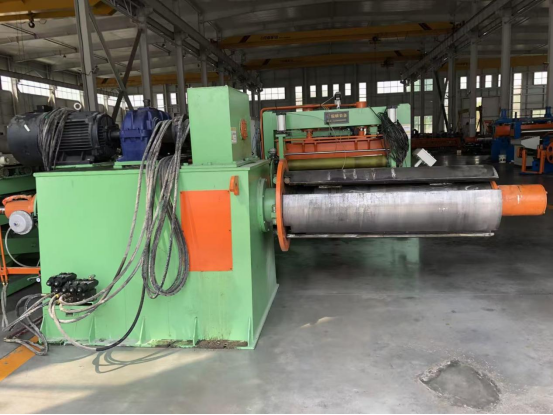

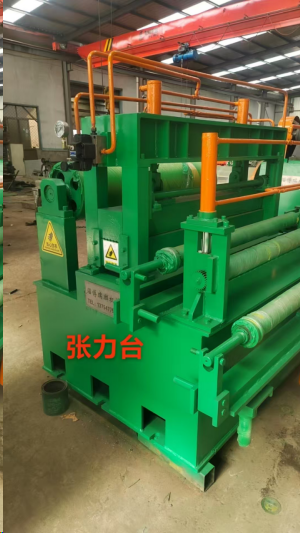

The core working principle relies on servo-driven precision positioning and multi-roll leveling technology. The complete workflow is as follows: 1. Uncoiling: Automated coil loading and uncoiling with tension control to prevent material deformation
2. Precision Leveling: Multi-roll systems eliminate internal stress, ensuring flatness ≤0.03mm/m
3. Servo Cutting: High-speed servo shears achieve ±0.05mm length tolerance, with automatic stacking for finished sheets
Core Architecture & Innovative Design Key modular components enhance performance: 1. Servo Cutting Unit: Advanced servo drives enable 40% higher efficiency than traditional equipment, with minimal downtime
2. Precision Leveling Module: Six-high roll structure eliminates sheet warping and surface scratches, critical for high-aesthetic materials
Comparison with Traditional Solutions Unlike manual or semi-automatic traditional lines, our automated systems reduce changeover time from 2 hours to 30 minutes, cut material waste by 3-5%, and lower energy consumption by 15% compared to industry averages.
All parameters are tested per ASTM and ISO standards, with full test reports available for each batch.
Parameter Category | Core Parameter | Standard Indicator | Test Condition | Selection Guidance |
|---|---|---|---|---|
Cutting Performance | Length Tolerance | ±0.05mm | 25℃ Room Temperature | Choose for high-precision applications like battery packs |
Flatness | ≤0.03mm/m | Post-leveling Measurement | Ideal for automotive structural parts | |
Material Compatibility | Thickness Range | 0.1–20mm | Carbon Steel, Stainless Steel, Aluminum | Select based on raw material specifications |
Width Range | 30–2200mm | Standard Coil Widths | Match to coil dimensions | |
Operational Efficiency | Energy Consumption | 15% Below Industry Average | Continuous 8-hour Operation | Reduces long-term operational costs |
Changeover Time | 30 Minutes | Spec Switching | Optimal for multi-variety, small-batch production |
1. High Precision & Efficiency Technical Support: Servo-driven cutting systems and Taiwan-proven manufacturing processes. Quantifiable Data: ±0.05mm cutting tolerance, 40% higher efficiency than traditional lines. Customer Value: Reduces material scrap by 3-5% and labor costs by up to 50%.
2. Energy Savings & Modularity Technical Support: Permanent magnet synchronous motors and energy recovery systems. Quantifiable Data: 15% lower energy consumption, 30-minute changeover time. Customer Value: Saves over ¥300,000 annually in electricity costs per line, adapting to flexible production needs.
Q: What is the cutting tolerance of your coil transverse cutting lines?
A: Our cut-to-length lines achieve length tolerances within ±0.05mm and flatness of ≤0.03mm/m, supported by advanced servo drives.
Q: How many workers are needed to operate the line?
A: Only 1-2 workers are required for fully automated operation.
Q: Do you provide overseas installation and commissioning services?
A: Yes, we dispatch experienced engineers to your site for installation, debugging, and operator training until the line runs smoothly.
